Electrobrick
– the flexible electronic module
Electrobrains
Current / Voltage Converter
Features
- Non
isolated, well priced converters for industrial standard current 0..20mA
or 4..20mA. Converts to 0..10V
- In
Electrobrick plug-and-play enclosures (same shape as the
common industrial relays).
- Compact,
flexible and easily exchanged. Delivered on a DIN rail socket with quality
screw terminals (standard or low-cost).
- Available
without socket, for direct PCB mounting or for customer's choice of
socket.
- With
instrumentation amplifier for "floating input" (end side does
not need to be tied to 0V, good if several inputs or instruments are
put in serie or disturbed by a common mode voltage)
- With
low pass filter for suppression of 50-60 Hz and other noise.
- Current
present (CP) diagnostic output
(4-20mA version). - Wide
supply voltage range.
- On
request: converters for other input current, for voltage input, higher
accuracy, other output voltage, higher common mode voltage
Available accessories
- Labels, jumpers, LED modules
standard version
low-cost version
Modules without sockets
(bottom view)

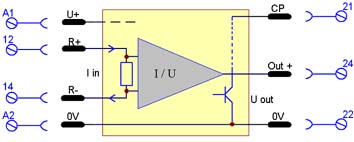

block diagram
(pin numbers preliminary)
Order numbers*: C5-0-20mA-0-10V C5-4-20mA-0-10V
* Sockets: C5..= on standard DIN rail socket, C5E..= with low-cost socket included,
C5M..= only module without socket
Example: C5E-4-20mA-0-10V (4-20mA to 0-10V converter with low-cost socket)
